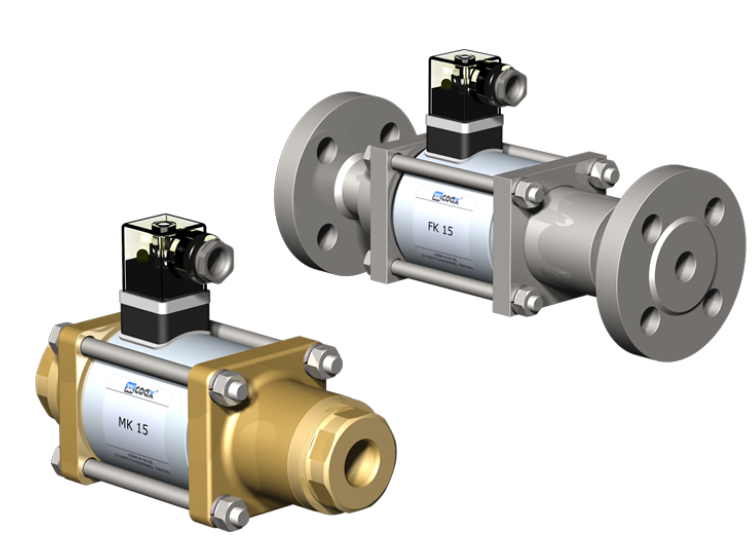

二位二通直動式同軸閥MK / FK 15

特性

端口	螺紋 G 3/8 - G 3/4 法蘭 PN 16/40/100
功能	NC
壓力范圍	0-16 / 0-40 / 0-64 / 0-100 bar
KV值	4,8 m³/h
介質	氣態  液態  高粘稠  凝膠狀  高污染
流向	A  B 如標注所示
開關周期	200 1/min
開關時間	打開 80 ms 關閉 80 ms
介質溫度	DC -20 °C — +100 °C AC -20 °C — +100 °C
環境溫度	DC -20 °C — +80 °C AC -20 °C — +80 °C
重量	MK 3,8 kg FK 5,0 kg
標稱電壓	Un 24 V DC Un 230 V 40-60 Hz AC
驅動	DC 直流電磁鐵 AC 內置式整流器的直流電磁鐵
絕緣等級	H 180 °C
防護等級	IP65
負載率	ED 100
連接	按DIN EN175301-803標準的插頭, 形式A 4個位置X90°, 電線直徑 6-8 mm M12x1 按DESINA標準的接頭 / VDMA

閥門的設計是基于介質和工況的要求.這些因素可能導致設計、密封材料和特性與通用參數表上的規格有所不同。
